Two Phase Heat Transfer Unit

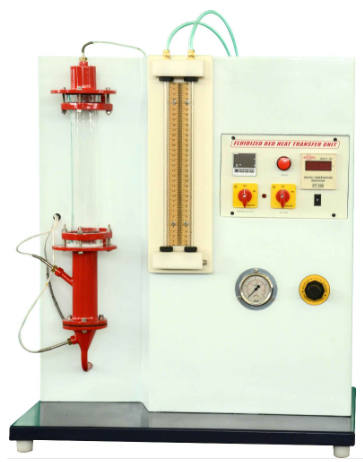

The Unit consists of a glass cylinder in which liquid is filled. This liquid is heated and boiled in a controlled environment with the help of provided heater and control. The glass column also houses a stainless steel coil through which cooling water is passes to condense the vapours of liquid present in gloss column. Temperature sensors are also fixed at appropriate positions to measure the temperatures at different locations in the cylinder.
| Water Flow Measurement |
Rotameter For cold water flow measurement.
|
| Water Supply |
2 LPM at 1 BAR
|
| Electricity Supply |
Phase,220 V AC,50 Hz,5- 15 amp
|
| Boiling Condensation Cylinder |
Material Borosilicate Glass Length 300mm OD 75mm approximately fitted with sealed caps
|
| Pressure Gauge |
Bourdan type,(0 to 2) kg/cm2
|
| Temperature Sensor |
RTD PT-100 type
|
| Digital Temperature Controller |
PID Controller,0-199.9 deg C
|
| Energy Meter |
Digital Type for power measurement.
|
| Digital Temperature Indicator |
0-199.9 deg C,with multi channel switch
|
